VIBRATING LINEAR TYPE WEIGHER
TP-A Series
The Linear Type Weigher offers advantages such as high speed, high accuracy, long-term stable performance, favorable pricing, and excellent after - sales service. It is suitable for weighing sliced, rolled, or regularly shaped products, including sugar, salt, seeds, rice, sesame, glutamate, coffee beans, seasoning powders, and more.

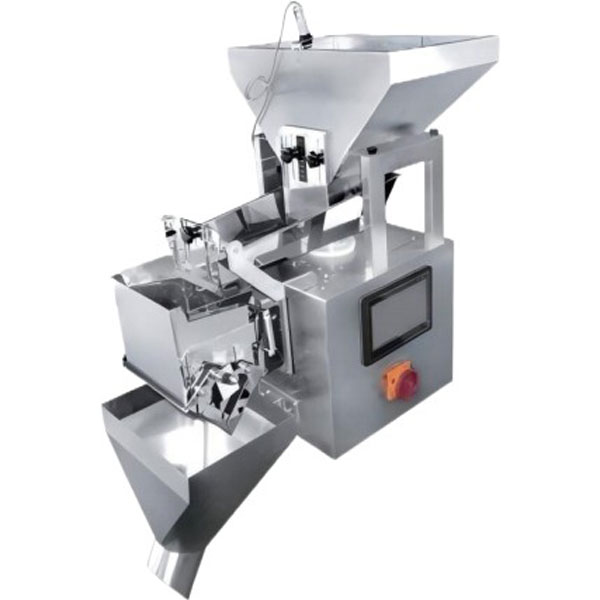

Model No. TP-AX1

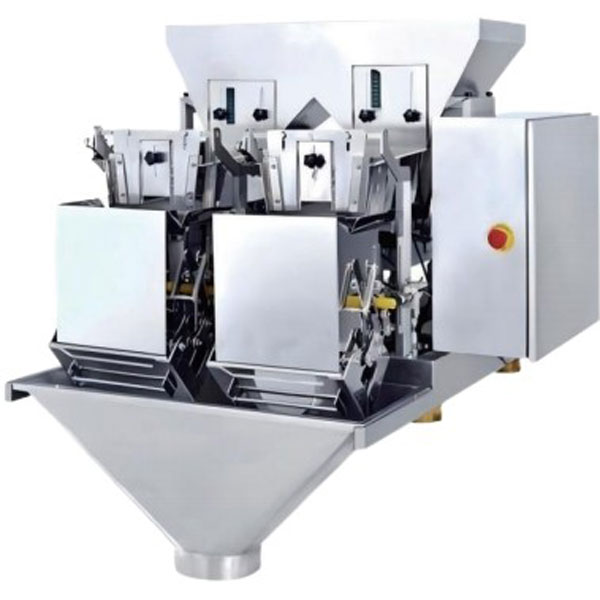

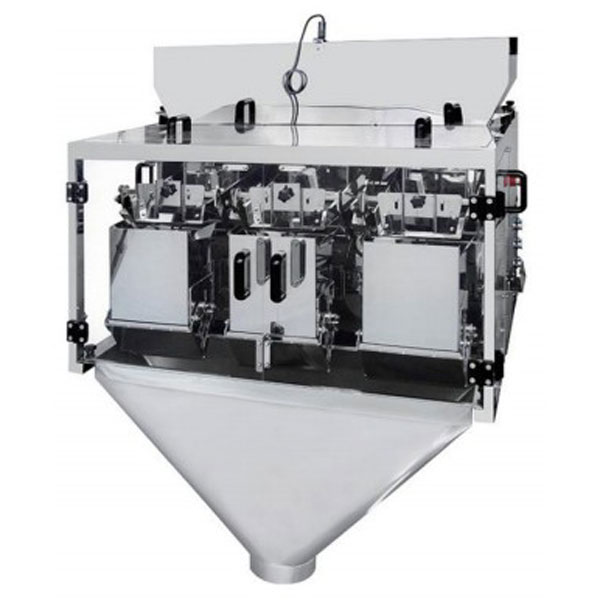

Model No. TP- AX2
Model No. TP- AXM2

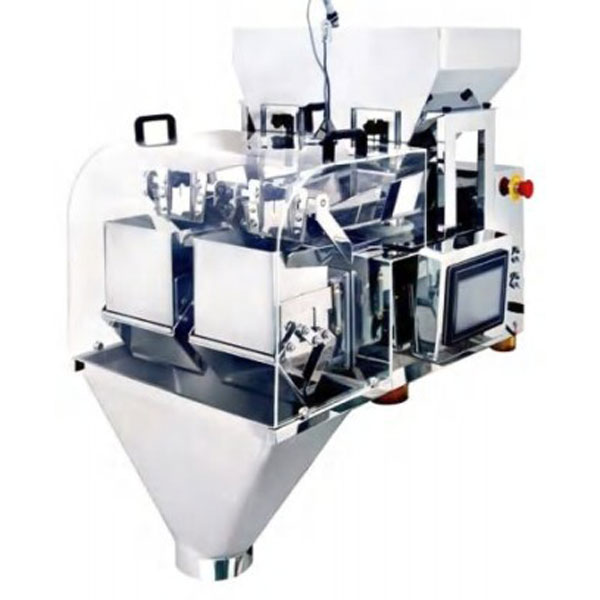

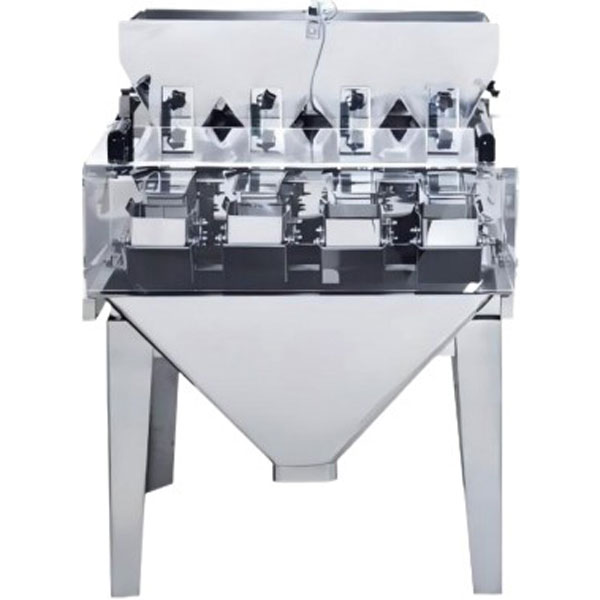

Model No. TP-AX3

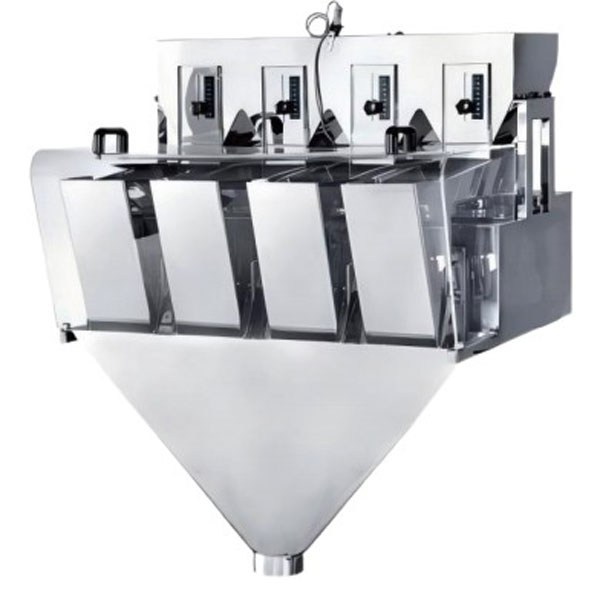

Model No. TP- AX4
Model No. TP-AXS4
PRODUCT OVERVIEW
Application
This machine is suitable for a wide range of products, including powders, granules, snacks, and other regularly shaped items such as sugar, salt, seeds, rice, coffee beans, and seasoning blends.
Features
● The new highly integrated modular control system.
● Automatic amplitude adjustment function for easier debugging.
● Capable of weighing a variety of different materials simultaneously to achieve mixed-material packaging.
● Parameters can be directly modified during operation based on production needs, making it easy to operate.
● A 2-year guarantee, offering the longest quality assurance period in the industry.
● Features a stepless vibration feeding system, ensuring more even material distribution and a larger weighing range.
TECHNICAL CONFIGURATION
Specification
| Model | TP-AX1 | TP-AX2 | TP-AXM2 | TP-AX3 | TP-AX4 | TP-AXS4 |
| Identify Code | X1-2-1 | X2-2-1 | XM2-2-1 | X3-2-1 | X4-2-1 | XS4-2-1 |
| Weighing Ranger | 20-1000g | 50-3000g | 1000-12000g | 50-4000g | 50-2000g | 5-300g |
| Max Speed | 10-15P/M | 30P/M | 25P/M | 30P/M | 55P/M | 70P/M |
| Hopper Volume | 4.5L | 4.5L | 15L | 6L | 3L | 0.5L |
| Storage HopperVolume(L) | 20 | 20 | 20 | 20 | 20 | 20 |
| Max Mixing Products | 1 | 2 | 2 | 3 | 4 | 4 |
| Power | 700W | 1200W | 1200W | 1200W | 1200W | 1200W |
| PowerRequirement | 220V/50/60Hz/ 5A | 220V/50/60Hz/6A | ||||
| PackingDimension(mm) | 860(L)*570 (W )*920(H) | 920(L)*800 (W )*890(H) | 1215(L)*1160 (W )*1020(H) | 920(L)*800 (W )*890(H) | 1080(L)*1030 (W )*820(H) | 820(L)*800 (W )*700(H) |
Configuration
| Order | Item | Brand | Model |
| 1 | Touch screen | Shanghai Kinco | MT4404T-JW |
| 2 | Sensor | Taiwan Fotek | CDR-30X |
| 3 | Power switch | Zhejiang Hengfu | 9V1.5A/24V1.5A |
| 4 | Mainboard | self made | |
| 5 | Module board | self made | |
| 6 | Load cell | Germany HBM | SP5C3/8KG |
| 7 | Hopper bearing sleeve | Germany IGUS | JW-TY-19-C |
| 8 | Circuit breaker | Zhejiang Delixi | CDB6S 1P C type 10A/ 16A/25A |
DETAILS
SS304/316 stainless steel for superior sanitation.

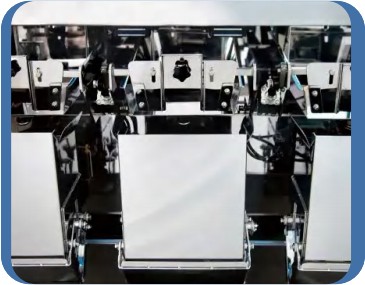

Round corner design with no burrs for safer operation and easier cleaning.

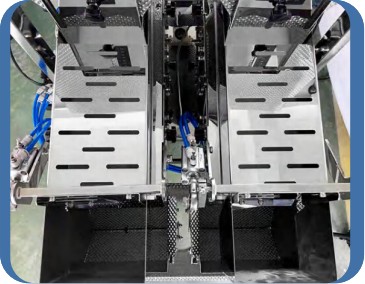

Parts in contact with materials (stopper, discharge funnel, vibrator pan, weighing hopper, etc.).

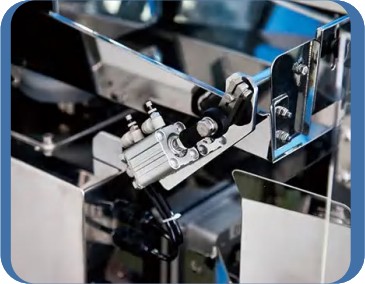

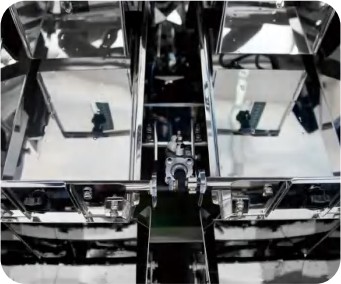

The discharge end of the vibration pan is equipped with a pneumatic gate for precise small-flow feeding.

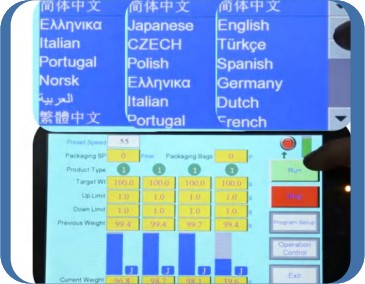

17 language options and an easy-to-use HMI. Specifications can be freely adjusted according to production requirements.

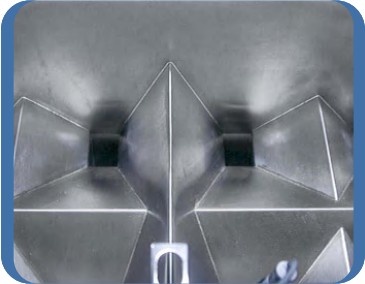

The material-contacting parts use decorative patterned plates to reduce the contact area with sticky materials.
STRUCTURE & DRAWING

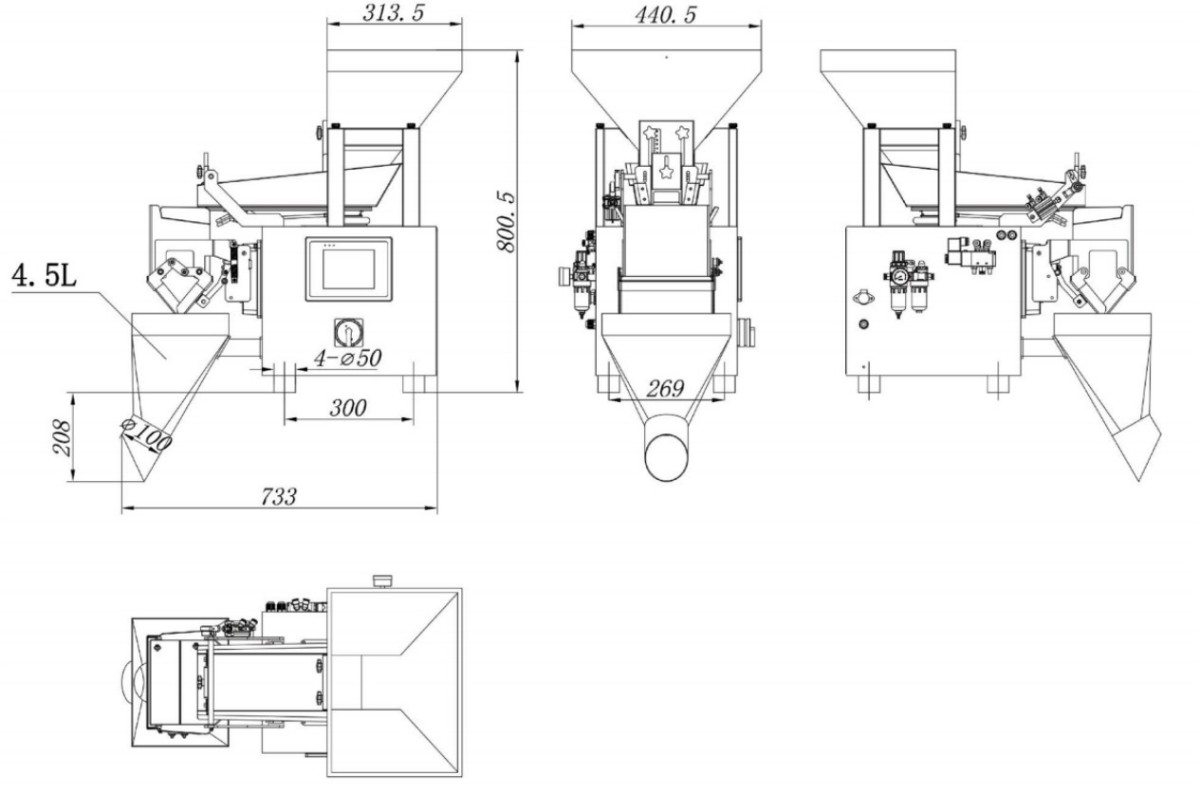

Model No. TP-AX1

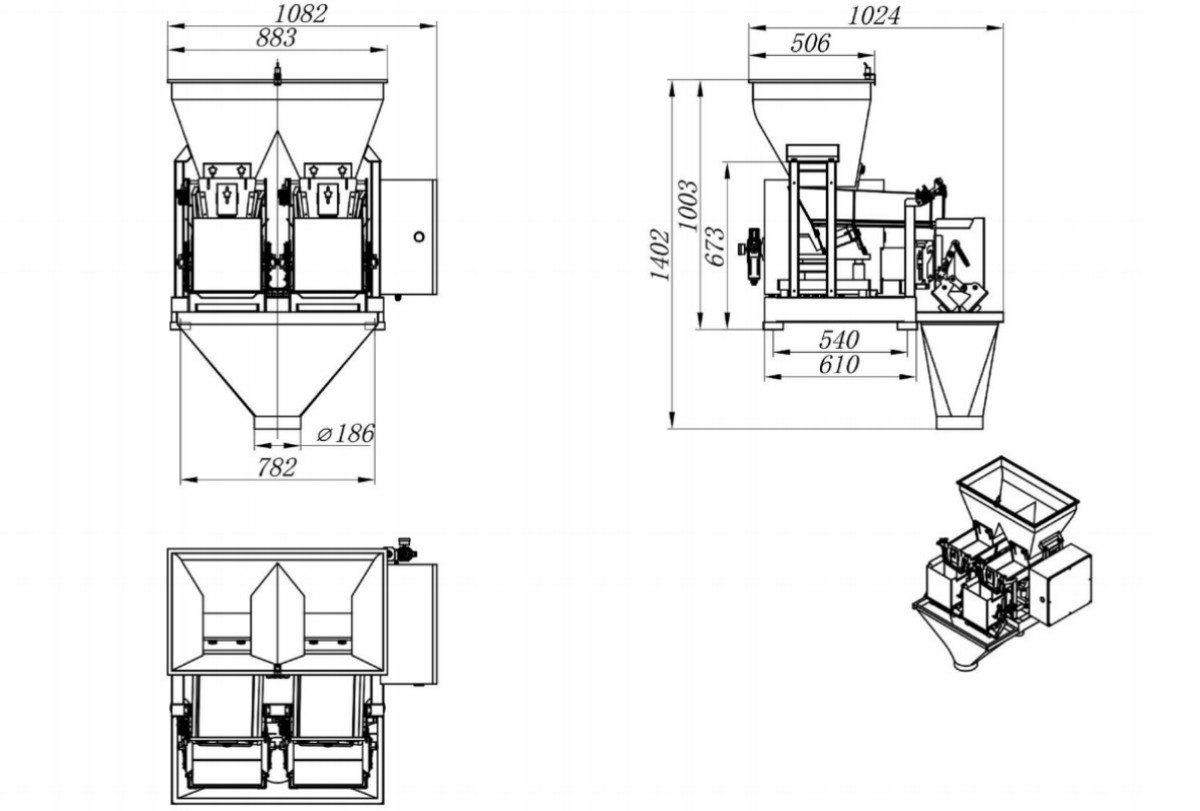

Model No. TP- AX2

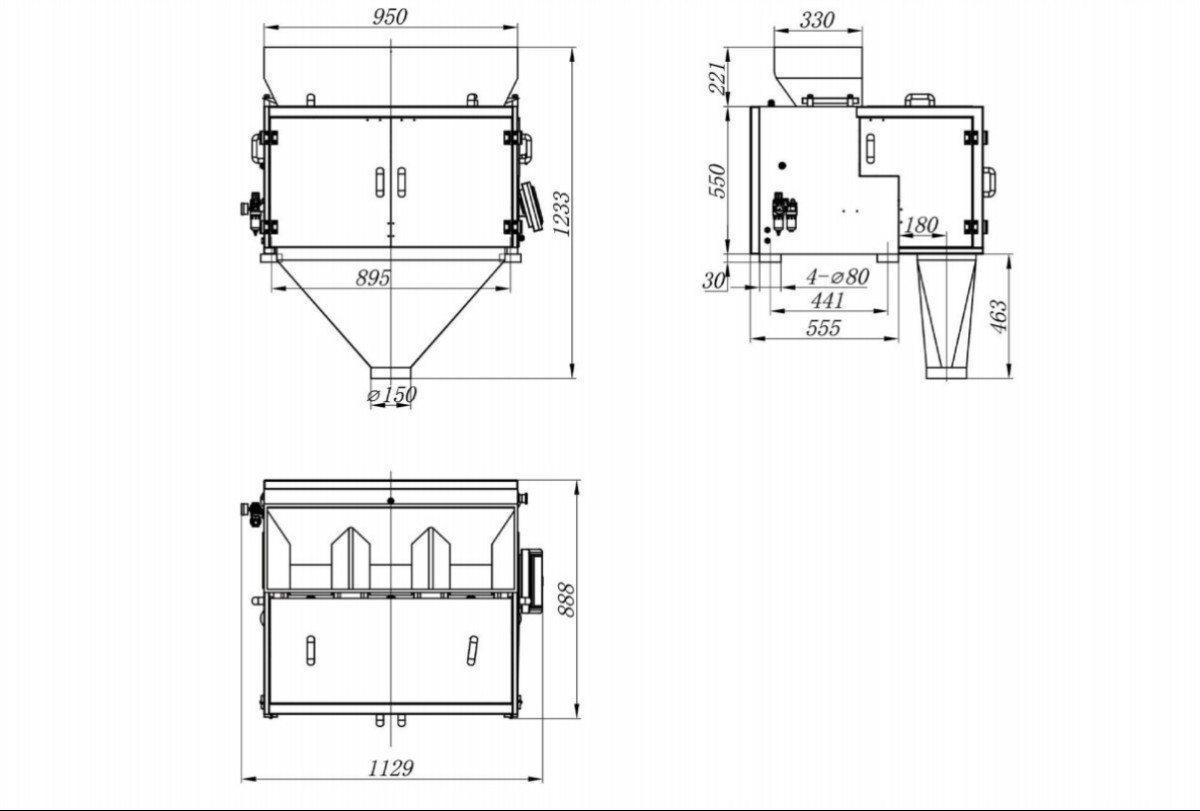

Model No. TP- AXM2
Model No. TP- AX3

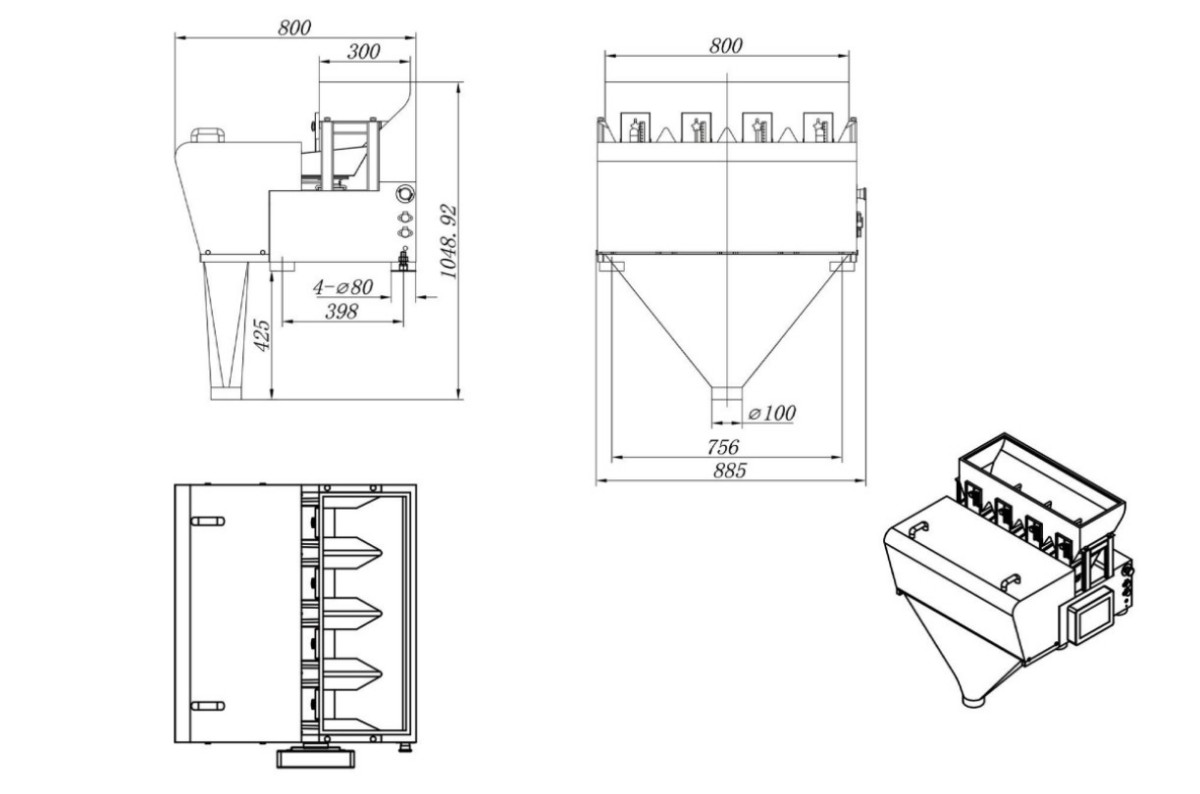

Model No. TP- AX4
