Introduction
The liquid mixer is designed for low-speed stirring, high dispersion, dissolving, and blending of liquid and solid products with varying viscosities. It is specifically suitable for emulsifying pharmaceutical, cosmetic, and fine chemical products, especially those with high viscosity and solid content.Structure: This machine includes the main emulsifying pot, a water pot, an oil pot, and a work-frame.
Working principle
The motor acts as a drive component to propel the triangle wheel to rotate. The ingredients are thoroughly mixed, blended, and stirred uniformly using the adjustable speed stirring of the paddle in the pot and the homogenizer at the bottom. The procedure is simple, low-noise, and stable.
The Application
The liquid mixer is applied to many industries, like pharmaceuticals, food, personal care, cosmetics, and the chemical industry.
Pharmaceutical industry: syrup, ointment, oral liquid and more
Food industry: soap, chocolate, jelly, beverage and more
Personal care industry: shampoo, shower gel, facial cleanser and more
Cosmetics industry: creams, liquid eye shadow, makeup remover and more
Chemical industry: oil paint, paint, glue and more
Features
- A high-viscosity material mixture is ideal for industrial mass production.
- The spiral blade's unique design ensures that high viscosity material is transported up and down with no space.
- A closed layout can prevent dust from floating in the sky, and a vacuum system is also accessible.
Specification
|
Model |
Effective volume(L) |
Dimension of tank (D*H)(mm) |
Total Height(mm) |
Motor power(kw) |
Agitator speed(r/min) |
|
|
TPLM-500 |
500 |
Φ800x900 |
1700 |
0.55 |
63 |
|
|
TPLM-1000 |
1000 |
Φ1000x1200 |
2100 |
0.75 |
||
|
TPLM-2000 |
2000 |
Φ1200x1500 |
2500 |
1.5 |
||
|
TPLM-3000 |
3000 |
Φ1600x1500 |
2600 |
2.2 |
||
|
TPLM-4000 |
4000 |
Φ1600x1850 |
2900 |
2.2 |
||
|
TPLM-5000 |
5000 |
Φ1800x2000 |
3150 |
3 |
||
|
TPLM-6000 |
6000 |
Φ1800x2400 |
3600 |
3 |
||
|
TPLM-8000 |
8000 |
Φ2000x2400 |
3700 |
4 |
||
|
TPLM-10000 |
10000 |
Φ2100x3000 |
4300 |
5.5 |
||
|
We can customize the equipment according to customer requirements. |
||||||
|
Tank Data sheet |
||||||
| Material | 304 or 316 Stainless steel | |||||
| Insulation | Single layer or with insulation | |||||
| Top Head type |
Dish top, Open lid top, Flat top |
|||||
| Bottom type | Dish bottom, Conical bottom, Flat bottom | |||||
| Agitator type | impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper | |||||
| magnetic mixer, Anchor mixer with scraper | ||||||
| Inside Finsh | Mirror polished Ra<0.4um | |||||
| Outside Finish | 2B or Satin Finish | |||||

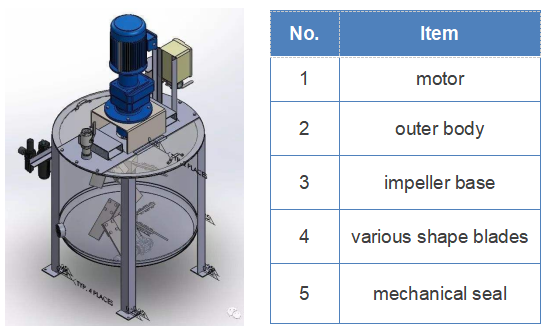

Standard Configuration
Detailed Images
Lid
Stainless steel material, half-open lid.
Pipe: All connection content parts adhere to GMP hygiene standards SUS316L, Sanitation grade accessories and valves are used.
Electric control system
(Can be customized to PLC+ Touch screen)
Scraper blade and stirrer paddle
- Full polishing of 304 stainless steel
- Durability and wear resistance
- Easy to clean
Homogenizer
- Homogenizer for the Bottom (can be customized to upper homogenizer)
- SUS316L is the material.
- Motor power is determined by capacity.
- DELTA inverter, speed range: 0-3600rpm
- Methods of processing: Before assembly, the rotor and stator are finished with wire-cutting machining and polished.
Optional
A platform can also add to the mixing pot. On the platform, the control cabinet is implemented. Heating, mixing speed control, and heating time are all accomplished on a fully integrated operation system that is a structure for efficient operation.
You can use as many different blades as you want.
The materials are heated or cooled by heating in the jacket, depending on the requirements of the manufacturing process. Set a specific temperature, when the temperature reaches the required level, the heating device will automatically turn off.
A liquid mixer with a pressure gauge is suggested for viscous materials.
