GENERAL DESCRIPTION

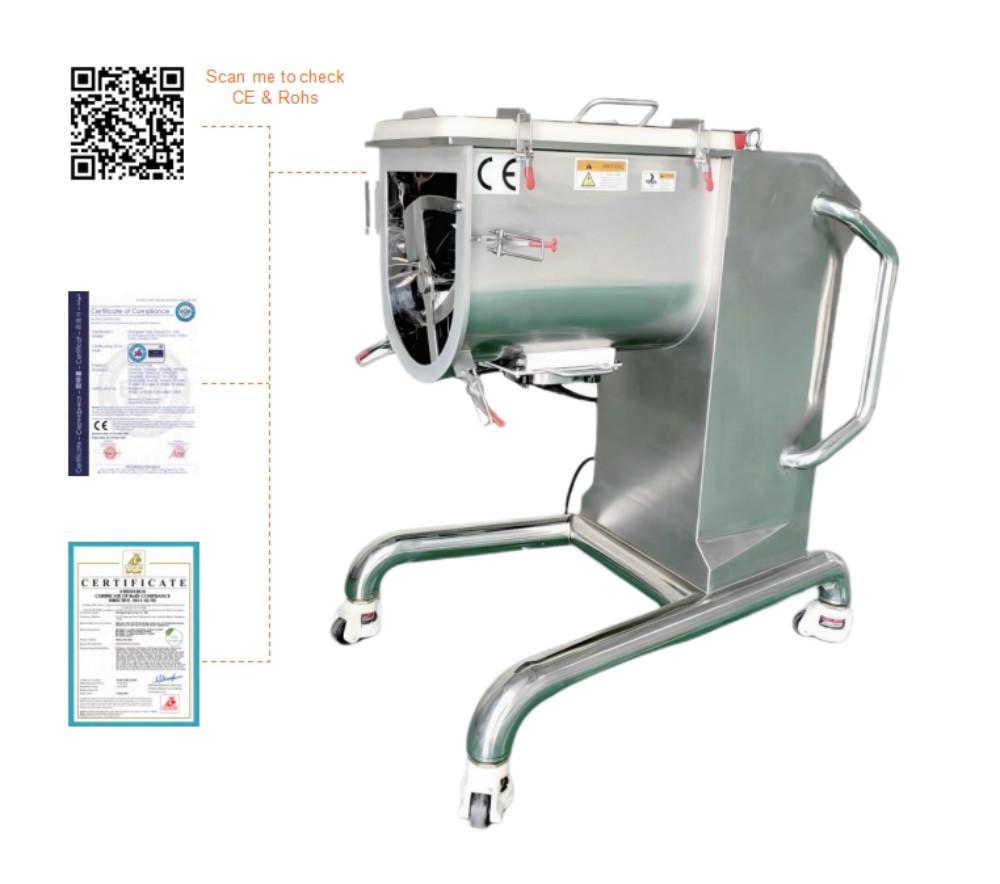

Mini-type Horizontal Mixer
Mini-type horizontal mixer is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule. Under the use of the driven motor, the ribbon/paddle agitator’s mix the materials effectively and to get a highly efficient and much convective mixing in shortest time.
| Model | TDPM 40S | TDPM 70S |
| Effective Volume | 40L | 70L |
| Fully Volume | 50L | 95L |
| Total Power | 1. 1kw | 2.2W |
| Total Length | 1074mm | 1295mm |
| Total Width | 698mm | 761mm |
| Total Height | 1141mm | 1186.5mm |
| Max Motor Speed(rpm) | 48rpm | 48rpm |
| Power Supply | 3P AC208-480V 50/60HZ | 3P AC208-480V 50/60HZ |
ACCESSORIES LIST
| No. | Name | Brand |
| 1 | Stainless Steel | China |
| 2 | Circuit Breaker | Schneider |
| 3 | Emergency Sswitch | CHINT |
| 4 | Switch | GELEI |
| 5 | Contactor | Schneider |
| 6 | Assist Contactor | Schneider |
| 7 | Heat Relay | CHINT |
| 8 | Relay | CHINT |
| 9 | Motor & Reducer | Zik |
| 10 | VFD | Qma |
| 11 | Bearing | SKF |
CONFIGURATIONS
A: Flexible Material Selections:
Materials can be carbon steel,SS304,SS316L; aside from a different material, it can also be used in combining process. Surface treatment for stainless steel includes coating Teflon, wiredrawing, polishing, mirror polishing, and all can be used in different parts of a mixer.
B: Flexible stirrer change:

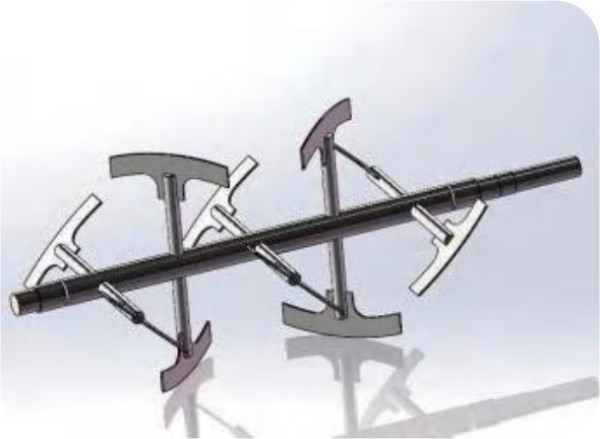

Different product material has different request. Can switch freely between the ribbon and paddle stirrer with shaft according to different request. paddle is more suitable for granule mixing. One machine match two modes of mixing.
Application
DETAILS PHOTOS
Inclined plane Control panel; Humanized design, convenient operation.
Safety grid keeps the operator away from stirrer turning. Interlock keeps workers safe when ribbon turning.
Side open door,Convenient for cleaning and changing stirrer.
Round corners protect operator, silicone ring sealing avoid powder dust come out.
Manual slid valve; Easy to control discharge.
Full welding and polishing technology;No residual powder and easy-cleaning after mixing.
Fuma casters bring you much convenience during production when change the mixer position.

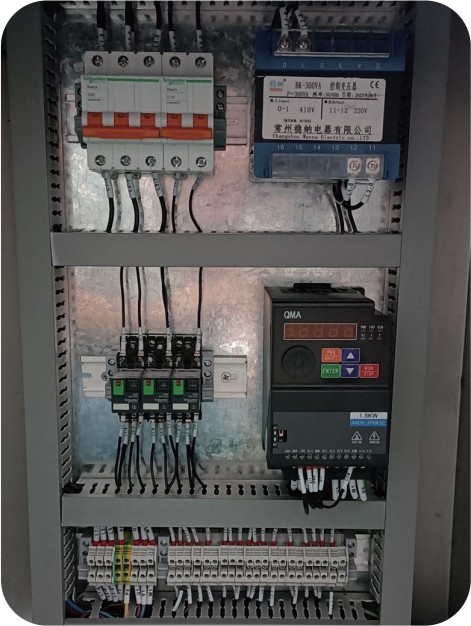

Electrical configuration and motor are completely sealed to prevent dust and water.
With VFD for speed adjustable;To meet different product request.

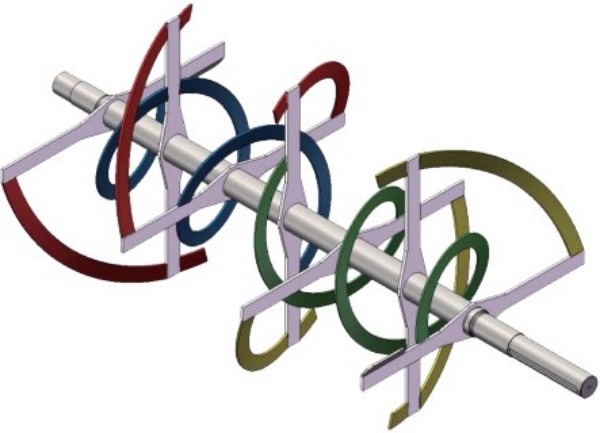

Ribbon and paddle can freely switch according different product characteristics.

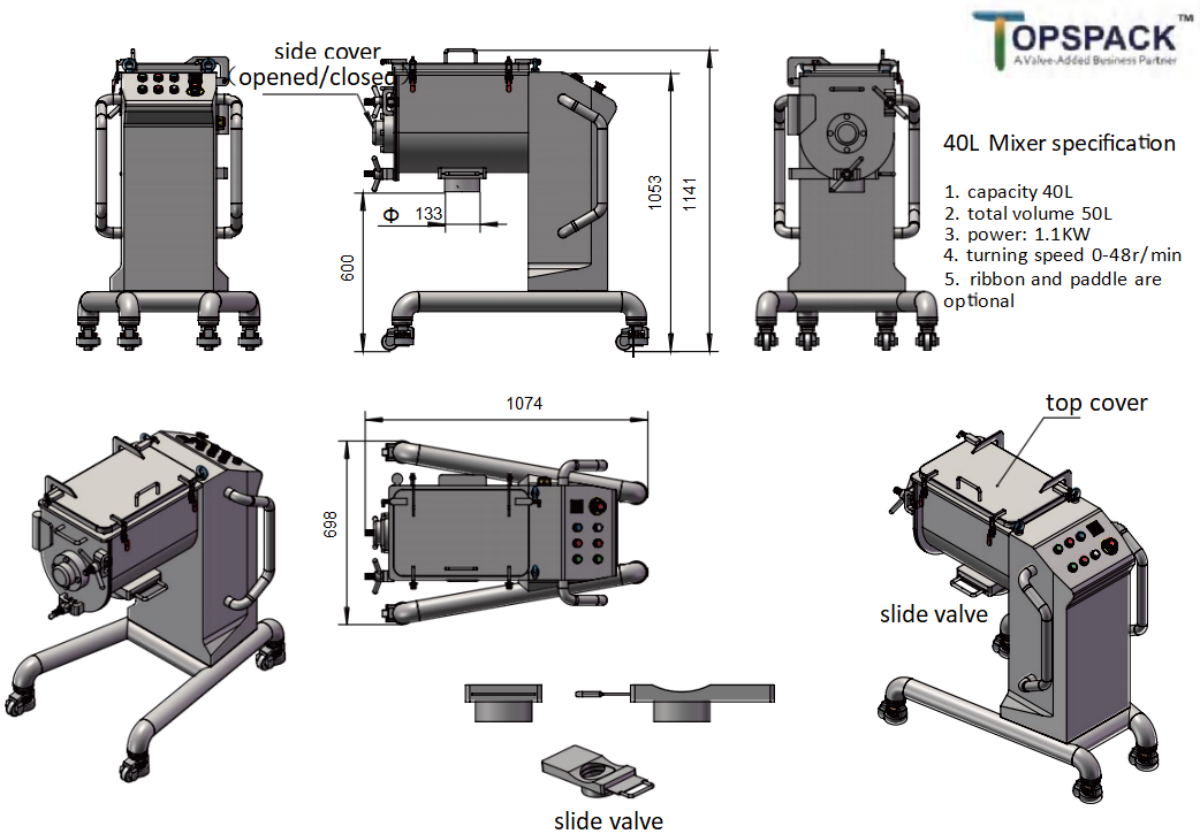

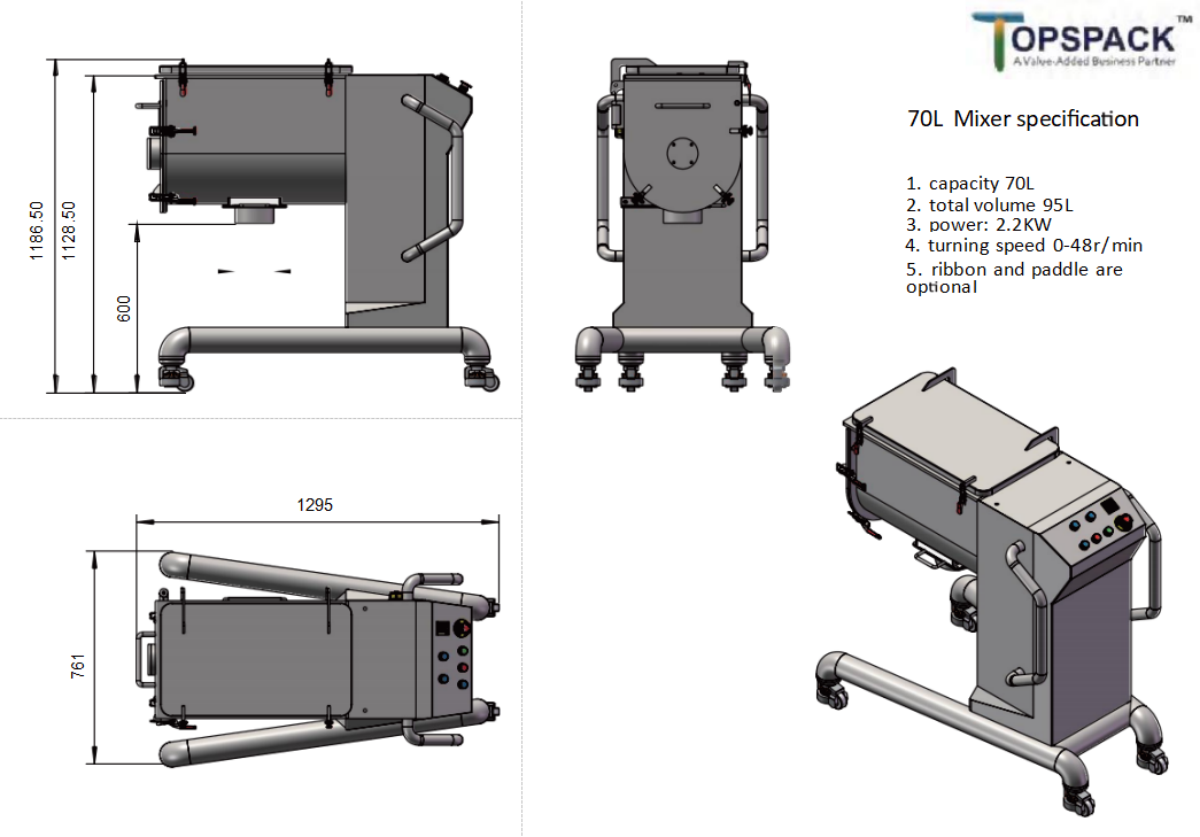

DIMENSION DRAWING
