Shanghai Tops Group Co., Ltd. specializes in powder and granular packaging systems. We design, manufacture, support, and service a full range of machinery for powder, liquid, and granular products. Our primary objective is to supply products to the food, agriculture, chemical, pharmaceutical, and other industries.
We have designed hundreds of mixed packaging solutions for our customers over the years, providing efficient working modes for customers all over the globe.
Function:

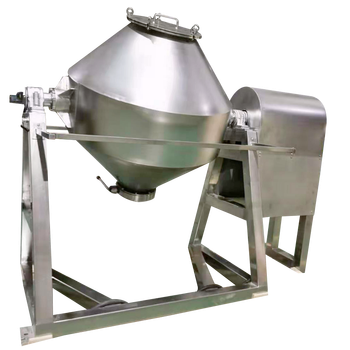

The purpose of a double-cone blender is to thoroughly mix free-flowing solids. The materials are fed into the mixing chamber via a fast feed port, either manually or by vacuum conveyor. Because of the mixing chamber's 360-degree rotation, the materials are completely mixed with a high degree of homogeneity. Cycle times are typically in the tens of minutes. The mixing time can be adjusted on the control panel based on the liquidity of your product.
Application:
• Pharmaceuticals: mixing prior to powders and granules
• Chemicals: metallic powder mixtures, pesticides, and herbicides and many more
• Food processing: cereals, coffee mixes, dairy powders, milk powder and many more
• Construction: steel preblends, etc.
• Plastics: mixing of master batches, mixing of pellets, plastic powders, and many more
Specification:
| Item |
TP-W200 |
TP-W300 | TP-W500 | TP-W1000 | TP-W1500 | TP-W2000 |
| Total Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Effective Loading Rate | 40%-60% | |||||
| Power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 7kw |
| Tank Rotate Speed | 12 r/min | |||||
| Mixing Time |
4-8mins |
6-10mins | 10-15mins | 10-15mins | 15-20mins | 15-20mins |
| Length |
1400mm |
1700mm | 1900mm | 2700mm | 2900mm | 3100mm |
| Width |
800mm |
800mm | 800mm | 1500mm | 1500mm | 1900mm |
| Height |
1850mm |
1850mm | 1940mm | 2370mm | 2500mm | 3500mm |
| Weight | 280kg | 310kg | 550kg | 810kg | 980kg | 1500kg |
The Highlights:
-Extremely even mixing. Two tapered structures are joined together. High mixing efficiency and uniformity result from 360-degree rotation.
-Both the internal and external surfaces of the mixer's mixing tank are fully welded and polished.
-No cross-contamination occurs. There is no dead angle at the contact point in the mixing tank, and the mixing process is gentle, with no segregation and no residue when discharged.
-Longer service life. It is made of stainless steel, which is resistant to rust and corrosion, stable, and long-lasting.
-All materials are stainless steel 304, with the contact part available in stainless steel 316.
-Mixing uniformity can reach 99.9%.
-Charging and discharging materials are simple.
-Cleaning is simple and risk-free.
Detailed Parts of Double Cone Blender:
A Safety Features
When the safety barrier on the machine is opened, the machine stops automatically, keeping the operator safe.
There are different structures to choose from.
The Interior of the Tank
• The interior has been completely welded and polished. Discharging is easy and sanitary, with no dead angles.
• It has an intensifier bar to help with mixing efficiency.
• The tank is made entirely of stainless steel 304.
• There are different structures to choose from.
The Electric Control Panel
-Depending on the material and mixing process, the mixing time can be adjusted using a time relay.
-An inch button is used to position the tank for feeding and discharging materials.
-It has a heating protection setting to prevent the motor from being overloaded.
There are different structures to choose from.
Charging Port
-The feeding inlet has a movable cover that is controlled by a lever.
-Stainless steel construction
- There are different structures to choose from.
Post time: Aug-09-2022
