In the world of powder and granular material mixing, the ribbon mixer is one of the most classic and efficient machines. Whether you are in the food, pharmaceutical, chemical, or construction material industry, you will often see it in action. But how does this seemingly simple machine achieve uniform mixing? This article explains the working principle of ribbon mixers in an easy to understand yet professional way.
1.What Is a Ribbon Mixer?

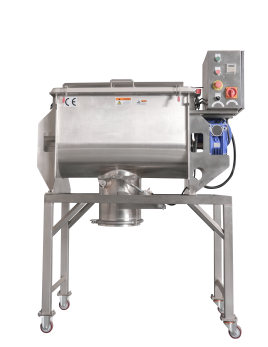

Simply put, a ribbon mixer is a mixing machine equipped with single or double spiral ribbon-shaped agitators, that’s why it named “Ribbon Mixer”, usually installed in a horizontal (or slightly inclined) U-shaped trough. This design allows the material to not only move in a circular path but also experience strong axial flow, resulting in fast and homogeneous mixing.
2.The main Components of a Ribbon Mixer
To understand how it works, let’s first look at its structure. A typical ribbon mixer consists of the following parts:
- U-shape trough

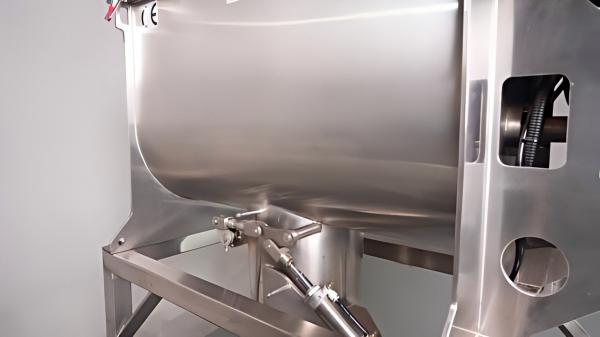

The mixing chamber has a full welded U-shape tank with mirror polished, leaving no dead corners, which facilitates material flow and discharge.
- Ribbon agitator assembly

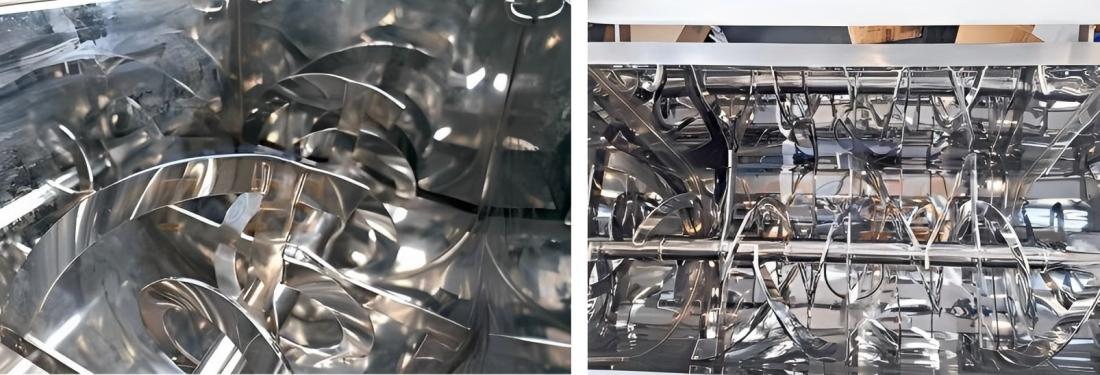

This is the most critical part. It usually consists of an inner ribbon and an outer ribbon, both welded to a central shaft. The outer ribbon has a larger diameter and moves close to the trough wall; the inner ribbon has a smaller diameter and is located near the shaft. The two ribbons have opposite helical directions.
*Single shaft ribbon
*double shaft ribbon
- Drive system

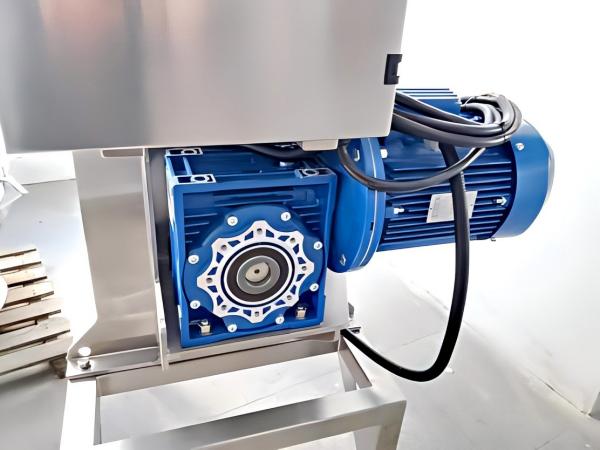

Includes an electric motor, a gearbox (reducer), and a coupling. The motor provides power, the gearbox reduces speed while increasing torque, so the ribbons can push the material at an appropriate linear speed.
- Control system

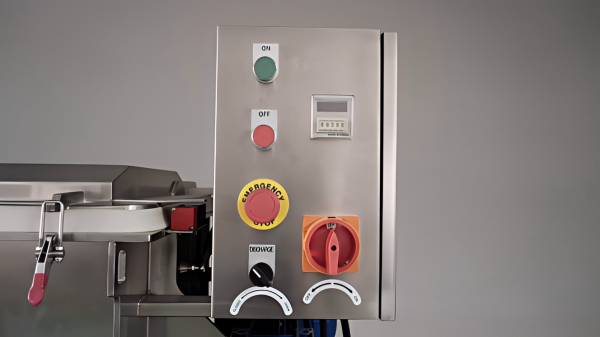

Modern ribbon mixers are equipped with a PLC (Programmable Logic Controller) and a touch screen. Operators can set mixing time, speed (if frequency control is available), and other parameters according to different material properties (density, particle size, flowability, etc.).
- Discharge mechanism

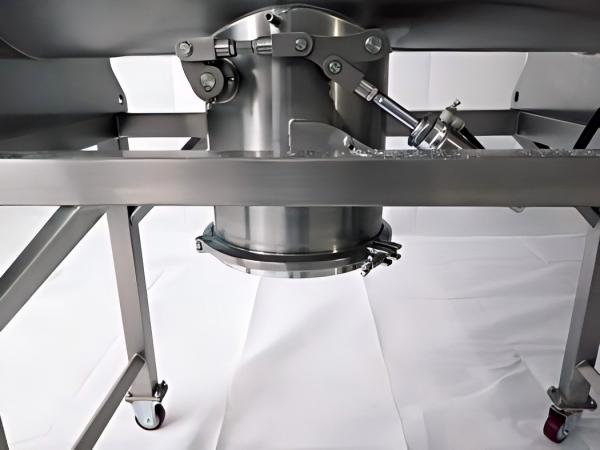

Usually located at the bottom of the trough, it can be a pneumatic or manual flap valve, a ball valve, etc., for quick and clean discharge.
3. Working Principle: How Do the Ribbons Drive Material Movement?
When the motor starts, power is transmitted through the gearbox to the central shaft, causing the inner and outer ribbons to rotate at a certain speed. Inside the trough, the material undergoes several types of motion:
3.1 Convective Mixing (Primary Motion)
- The outer ribbon pushes the material from both ends toward the center of the trough.
- The inner ribbon does the opposite, it pushes the material from the center toward both ends.

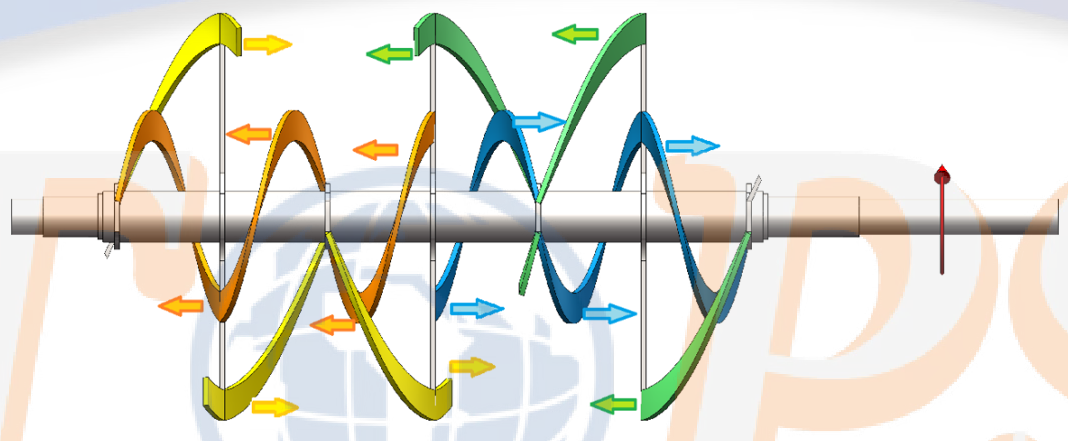

- Because the two ribbons have opposite helical directions, they create two reverse axial flow loops. This “push‑pull” effect quickly achieves macroscopic uniformity of the material. Think of it as two hands continuously scooping sand from the ends to the middle, and from the middle back to the ends.
3.2 Shear Mixing
A small gap (typically a few millimeters) is maintained between the edges of the ribbons and the inner wall of the trough. As the ribbons rotate, they scrape the material against the wall, generating strong shear forces that break down agglomerates. This shear action is particularly important for sticky materials or powders containing a small amount of liquid.
3.3 Diffusion Mixing
Under the agitation of the ribbons, individual particles continuously change their relative positions, moving randomly and gradually spreading from local areas to the whole container. Although diffusion mixing is not dominant in a ribbon mixer (where convective mixing prevails), it is still essential for final micro‑uniformity, such as the distribution of trace additives.
4. Control and Operation: Ribbon Mixers in the Intelligent Age
You might ask: “How do we ensure the mixing result is just right?” That is where the control system comes in.
Modern ribbon mixers typically use a PLC with a human machine interface (HMI) or only the outset control button, which basic on different design of different models. The operator simply inputs the mixing time, rotation speed(on variable frequency models), and start/stop commands via the touch screen. The PLC runs the preset program automatically and gives a signal when mixing is complete. For different recipes, for example, free flowing dry powder versus a greasy wet mixture, multiple process parameters can be stored for one and touch changeover.

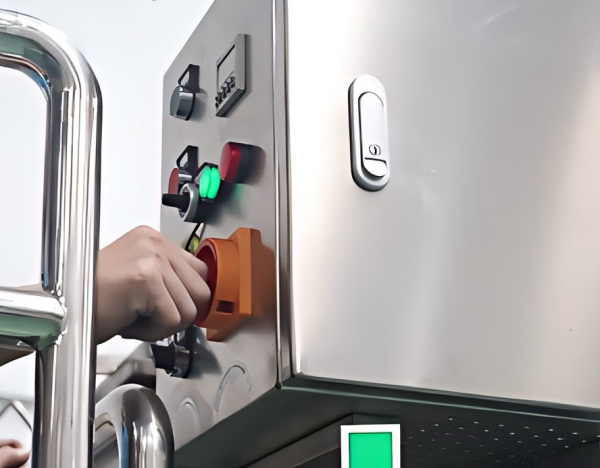

Safety interlock functions are also integrated into the control system: for instance, the motor cannot start unless the trough cover is properly closed; the machine will not start mixing if the discharge valve is still open, and so on.
5. Summary
The working principle of a ribbon mixer can be summed up in one sentence:
By means of counter‑rotating inner and outer ribbons, the material is driven into an axial circulating convection inside the trough, combined with shear and diffusion actions, to achieve fast and uniform macroscopic and microscopic mixing.
From the early mechanical designs to today’s PLC‑controlled automatic systems, this seemingly simple machine embodies the core wisdom of powder engineering. If you are selecting a mixing device for medium‑density powders in relatively large batches, the ribbon mixer is a reliable choice. And by understanding how it works, you hold the key to using and maintaining it correctly.
