Our patent technology of discharge

For today's blog, let me share with you our patent technology for discharge:

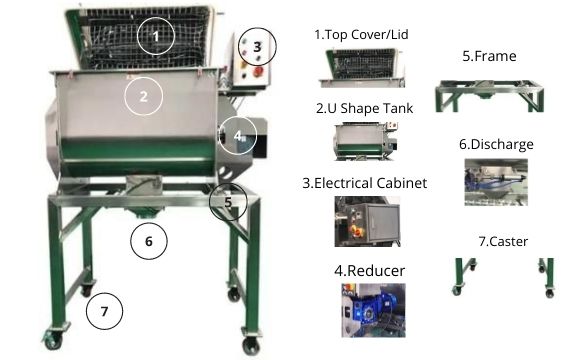

Horizontal Ribbon Mixer


Leakage is a constant issue for mixer operators (powder inside to outside at discharge). Top's group has a solution for such an issue.

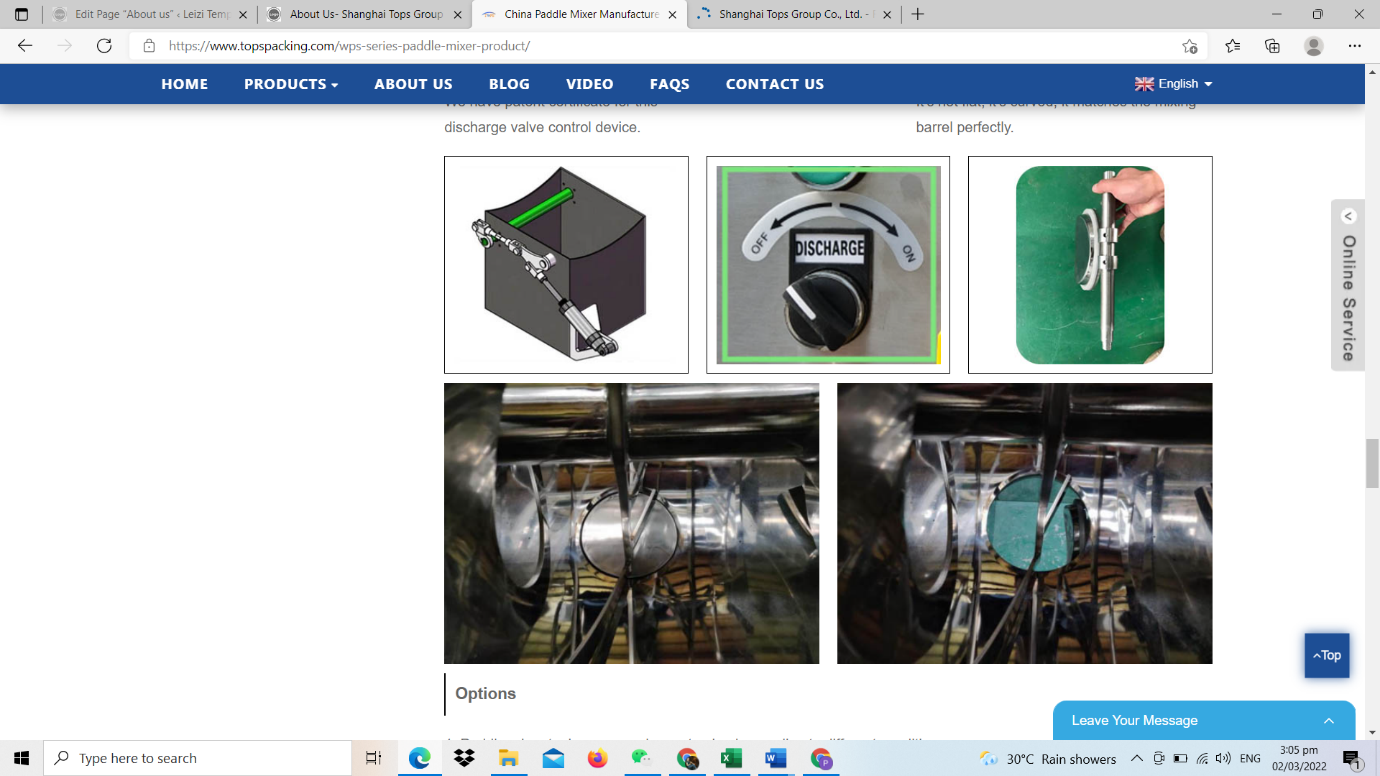

The curved flap valve design is not flat, but instead curved, and it perfectly suits the mixing barrel (same with the mixer tank bottom, no mixing dead angle, easy cleaning, no left powder, good sealing).
A unique air cylinder angle to manage the flap valve to achieve maximal pushing for good sealing.
Our patent technology of discharge


The Horizontal Ribbon Mixer is tested by water, and it is proven and tested that there is no leakage at all. It's a solution to mixer users' problems.


Post time: Mar-09-2022
