What is a V Blender Machine and How Does It Work

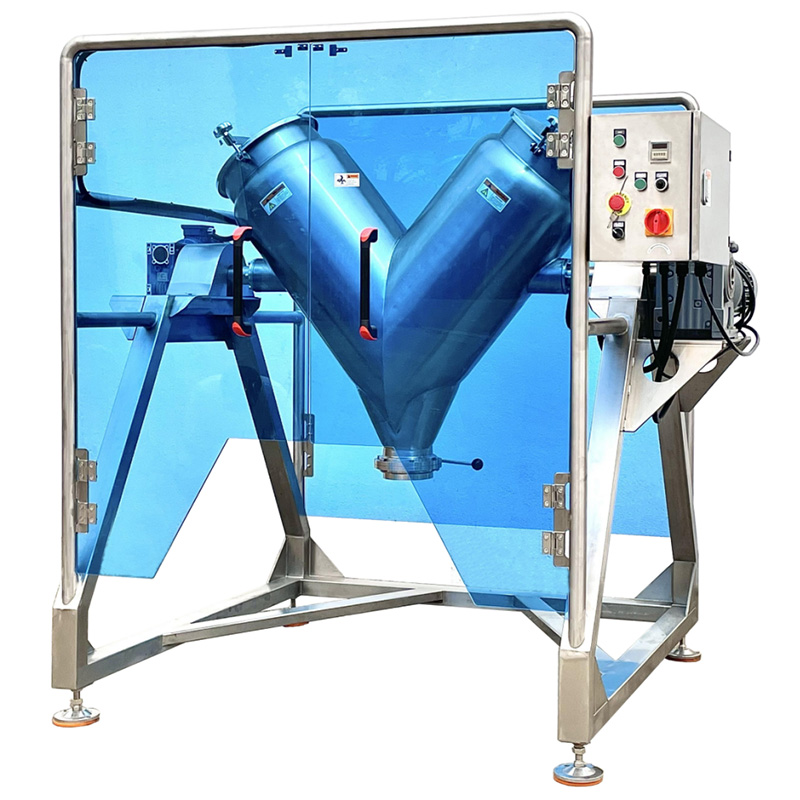

A v blender machine is a specialized equipment used for efficient mixing of dry powders and granular materials. The unique V-shaped design of the v blender machine creates a tumbling action that ensures uniform blending in a short time. This machine is essential in industries where consistency and quality matter. In the pharmaceutical sector, 35% of dry powder mixing operations use a v blender machine, while food processing accounts for 25%, as shown below:

Many industries rely on v blender machines for reliable results:

● Pharmaceutical industry

● Food processing industry

● Chemical industry

● Cosmetics industry

The global market for these machines exceeds $14 billion. Manufactured by SHANGHAI TOPS GROUP CO., LTD, the v blender stands out with its adjustable speed, stainless steel construction, and safety features.

Key Takeaways

● A V blender machine efficiently mixes dry powders and granules using a unique V-shaped design that promotes gentle tumbling action.

● This machine is crucial in industries like pharmaceuticals and food processing, ensuring consistent quality and uniform blending.

● Operators should load the chamber to 40-50% capacity for optimal mixing efficiency and to achieve the best results.

● V blenders are easy to clean and maintain, with stainless steel construction that supports hygiene and prevents contamination.

● Choosing the right V blender model depends on your production needs, including batch size and material type.

How a V Blender Machine Works

Working Principle

The v blender working principle centers on its unique v-shaped chamber, which consists of two inclined cylinders joined together. When the machine operates, the chamber rotates around a horizontal axis. This rotation, combined with gravity, causes the materials inside to split and recombine continuously. As the v blender turns, powders and granules cascade from one side of the chamber to the other. This process ensures that every particle has a chance to move throughout the entire chamber, resulting in a homogeneous mix.

The v blender working principle relies on gentle mixing. The design promotes a tumbling action that gently diffuses the materials. This approach is especially important for sensitive or fragile powders, as it minimizes particle damage. The v blender working principle also allows for a low-shear environment, which helps maintain the integrity of the materials being blended.

A typical mixing cycle in a v blender lasts between 5 to 15 minutes, depending on the material. The mixing speed can be adjusted to suit different types of powders. Operators usually load the chamber to about half its capacity to allow enough space for the materials to move freely. This setup maximizes mixing efficiency and ensures complete discharge of the blended product.

Tip: Always keep the vessel about 40-50% full for optimal mixing efficiency and to achieve the best results.

Mixing Mechanism

The mixing mechanism of a v blender depends on gravity and the rotating agitator. As the chamber rotates, gravity pulls the powders down each leg of the “V.” The materials then tumble and flow into the central area, where they mix and separate repeatedly. This gentle mixing action is ideal for maintaining particle integrity and preventing material degradation.

The main forces at work are gravitational and diffusive. The v blender uses these forces to move the powders randomly, creating friction between the particles and the chamber walls. This process helps achieve a uniform blend without causing excessive shear or impact. The gentle mixing environment is especially beneficial for delicate materials that require careful handling.

Mixing efficiency in a v blender is high because the design allows for continuous splitting and recombining of the powders. The mixing speed can be set between 10 to 25 revolutions per minute, depending on the application. Most materials reach a homogeneous mix within 8 to 10 minutes, but some may need up to 15 minutes for complete blending.

● The v-shaped design promotes gentle diffusion and tumbling action, which helps in continuously splitting and recombining powders.

● This gentle mixing environment is particularly beneficial for sensitive powders, minimizing damage during the blending process.

● While v blenders may require longer mixing times to achieve uniformity compared to more aggressive methods, they provide a low shear environment that supports homogeneity.

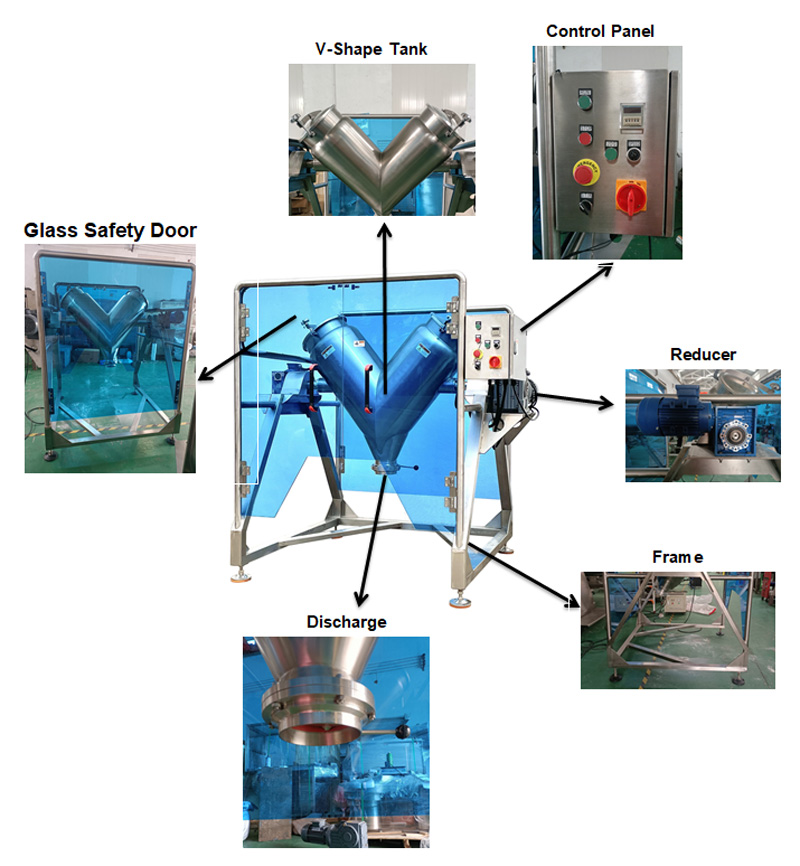

Key Components

A v blender consists of several important parts that work together to ensure safe and efficient operation. The main components include:

Safety features are a key part of the v blender design. The plexiglass door allows operators to observe the mixing process while keeping the chamber sealed. A safety button automatically stops the machine if the door is opened, protecting users from accidental contact with moving parts. The stainless steel construction ensures durability, resists corrosion, and makes cleaning easy. This design helps prevent contamination and supports high standards of hygiene, especially in industries like pharmaceuticals and food processing.

The v blender also features a rotating agitator that enhances the mixing process. Adjustable mixing speed settings allow users to customize the operation for different materials, further improving mixing efficiency. The design of the v blender ensures minimal dead angles, which means that all material is mixed thoroughly and there is complete discharge at the end of the cycle.

Note: The simple structure of the v blender makes routine maintenance and cleaning straightforward, reducing downtime and ensuring consistent performance.

Types of V Blender Machines

Standard Models

Standard models of the v type mixer are popular in many industries. These machines usually have capacities ranging from 100 liters to 200 liters. The v type mixer is a common choice for pharmaceutical companies. It helps blend powders and granules, which is important for making medicines with consistent potency. Food processing plants also use the v type mixer to mix dry ingredients like spices and flour. This ensures that every batch has the same taste and texture.

● The v type mixer is easy to operate and clean.

● It works well for small to medium production runs.

● Many companies choose this model for its reliability and efficiency.

High-Capacity Options

Some industries need to mix large amounts of material at once. High-capacity v type mixer machines are designed for these tasks. They can handle bigger loads without losing mixing quality. Construction and plastics industries often use these larger mixers. The v type mixer in this category can blend heavy powders and granules quickly. It saves time and labor in large-scale production.

Specialized Variants

Some applications require special features. The v type mixer can be customized with options like an intensifier bar. This bar creates extra shear force inside the chamber. It helps break up clumps and spreads powders more evenly. This feature is useful for products that need a very fine or uniform mix. Other customizations include vacuum loading systems and spray nozzles for adding liquids. These changes make the v type mixer more flexible for different materials and processes.

Note: Customizing a v type mixer can improve performance and help meet strict quality standards in sensitive industries.

Features and Benefits of V Blender

Main Features

The v blender stands out for its user-friendly design and focus on hygiene. Its external rotating drum allows for easy access, making cleaning fast and efficient. The smooth, polished interior resists product buildup, which helps prevent contamination and supports high standards in industries like pharmaceuticals and food processing. The simple structure, with no internal moving parts, means there are no dead zones where powders can get trapped. This design also makes it easier to meet cleaning validation requirements.

Other main features include adjustable speed settings, which let users tailor the mixing process to different materials. The v blender uses a plexiglass safety door and a safety button to protect operators during use. Stainless steel construction ensures durability and long service life.

Advantages for Dry Powder Mixing

The v blender offers several advantages for dry powder mixing. It provides gentle, uniform blending, which is important for sensitive or fragile materials. The unique tumbling action protects particle integrity and prevents excessive heat or abrasion. This makes the v blender ideal for high-value products that require careful handling.

● Maintains product quality by minimizing shear forces.

● Ensures reliable, consistent blending with less than 2% batch variation.

● No dead zones in the chamber mean every particle gets mixed.

● Flexible capacity supports both small and large batch production.

● Low maintenance needs and robust construction add to its value.

Adjustable speed helps achieve the best results for each batch, improving efficiency and supporting lean manufacturing. The v blender’s design also allows for validation against strict industry standards.

Tip: The key benefits of v blenders include easy cleaning, minimal cross-contamination, and the ability to handle delicate powders without loss of quality.

Limitations

While the v blender excels at dry powder mixing, it is not suitable for mixing liquids or very sticky materials. The gentle tumbling action works best with free-flowing powders and granules. Materials with very different particle sizes or densities may require special attention to avoid segregation. The design focuses on dry blending, so applications needing high shear or particle size reduction are better served by other equipment.

Dry Powder Mixing Applications

Pharmaceutical Industry

V blender machines play a key role in the pharmaceutical industry. They help achieve precise dry powder mixing, which is essential for making safe and effective medicines. These machines blend active drugs with excipients, powders for tablet and capsule production, and granules for coating processes. The most common materials processed include:

● Active pharmaceutical ingredients (APIs)

● Excipients

● Nutraceuticals

● Supplements

Uniform mixing ensures that each tablet or capsule contains the right amount of medication. This consistency is important for patient safety and product quality. V blender machines can achieve a blend uniformity with a relative standard deviation of less than 2%. This level of accuracy supports strict quality control standards in pharmaceutical manufacturing.

Food Processing

Food processing plants use v blender machines for a wide range of dry powder mixing tasks. These machines combine ingredients like flour, starch, sugar, and flavoring agents. They also mix powdered beverages, spices, and seasonings. The table below shows some common applications and the food products that benefit:

The smooth and polished interior surfaces of the v blender resist product buildup. This design allows for fast and effective cleaning, which helps prevent cross-contamination between batches.

Chemical and Other Industries

V blender machines are also used in chemical, plastics, and construction industries. They handle dry powder mixing of metallic powders, pigments, resins, and other granular materials. The machines support powder processing for products like paints, ceramics, and specialty chemicals. Their versatility makes them valuable across many common applications and industries. The easy-to-clean design and efficient mixing action help maintain product quality and reduce downtime.

Tip: V blender machines offer reliable performance for dry powder mixing in many fields, making them a smart choice for businesses that need consistent results.

Operation and Maintenance

How to Use a V Blender

Operating a V blender is simple and efficient. Start by checking that the chamber is clean and free of leftover materials. Load the dry powders or granules into the V-shaped barrel, making sure not to exceed half the total capacity. This allows the materials to tumble freely and mix well in batch mode. Close the plexiglass safety door and ensure the safety button is engaged. Set the desired mixing speed and time on the control panel. Press start to begin the mixing process. The machine will rotate, causing the powders to blend evenly. When the cycle ends, stop the machine and open the discharge valve to collect the blended product. Always follow the manufacturer’s instructions for using and maintaining a v blender to ensure safe and reliable operation.

Cleaning and Safety Tips

Proper cleaning and safety checks are important for every batch mode operation. After each use, remove any remaining powder from the chamber. Use a soft brush or vacuum to clean the interior. Wipe all surfaces with a damp cloth and approved cleaning solution. Inspect the safety features before each use. The table below highlights key safety features to check:

Tip: Always check that the safety grid railing is in place and the machine meets industry standards before starting a new batch.

Choosing the Right Model

Choosing the right v blender depends on your production needs and the materials you plan to mix. The capacity of the machine determines how much material you can blend in one cycle. For small batches, a standard model works well. For larger production, select a high-capacity model that supports batch mode. The material used for construction, such as SS 304, SS316, or SS316L, affects durability and sanitation. Stainless steel models are best for food and pharmaceutical applications. When choosing the right v blender, consider your industry, the type of powders, and how often you need to clean the machine. This ensures you get the best performance and long service life.

A V blender machine offers a reliable solution for dry powder mixing. Its V-shaped design creates gentle, uniform blends while protecting delicate materials. Businesses benefit from these features:

● Gentle tumbling action for low shear mixing

● High mixing uniformity, even with small batches

● Easy loading, discharge, and cleaning

● Low energy use and minimal heat generation

● Flexible sizes for different production needs

Consider your material type and batch size to choose the best V blender for your process.

FAQ

What materials can a V Blender mix?

A V Blender mixes dry powders and granular materials. It works well with pharmaceuticals, food ingredients, chemicals, and metallic powders. Sticky or liquid materials are not suitable for this machine.

How long does mixing take in a V Blender?

Mixing usually takes 5 to 15 minutes. The time depends on the type of material and the batch size. Adjustable speed settings help achieve the best results.

Is cleaning the V Blender easy?

Yes. The stainless steel surfaces are smooth and polished. Operators can clean the chamber quickly with a brush or cloth. The design prevents powder buildup and supports hygiene.

What safety features does the V Blender have?

The V Blender includes a plexiglass safety door and a safety button. The machine stops automatically if the door opens. Stainless steel construction protects users and keeps the process safe.
