In industries such as food, chemical, and pharmaceutical processing, mixing is a fundamental yet critical step. Faced with various powders, granules, or slurries, selecting the right mixing equipment directly impacts product uniformity, production efficiency, and cost control.
Among the many types of mixing equipment, the ribbon mixer and the paddle mixer are two common models that are often confused. Both are used for solid-solid or solid-liquid mixing, but they have fundamental differences in design, suitable materials, and mixing performance. The following key points will help you quickly understand their core differences.
1. Different Structures: One Looks Like a Twist, the Other Like a Boat Oar

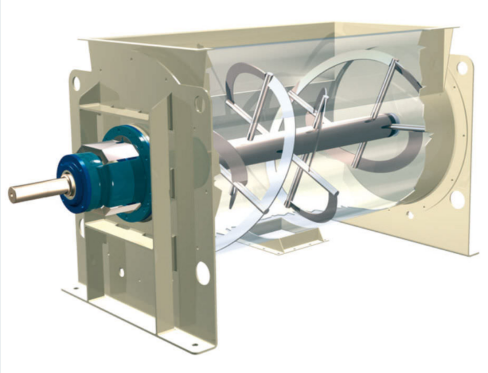

A ribbon mixer typically has a U-shaped or cylindrical trough. Inside, the agitator shaft is fitted with inner and outer double-layer spiral ribbon blades. The blade shape resembles a twisted rod or a spring, with the outer layer pushing material in one direction and the inner layer pushing it in the opposite direction. It is often called a ribbon blender or helical ribbon mixer.
A paddle mixer, on the other hand, has multiple flat or specially shaped paddles mounted on the agitator shaft, resembling boat oars or shovels. The angle of these paddles can be adjusted as needed to push, cut, or throw the material. It is often called a paddle blender or paddle agitator.
In a nutshell: the ribbon mixer's blades look like a twist or spring, while the paddle mixer's blades look like boat oars or shovels.
2. Different Working Principles: Convective Circulation vs. Tossing and Turning
When a ribbon mixer operates, the outer ribbon pushes material from left to right, while the inner ribbon pushes it from right to left, creating a large-scale convective circulation within the trough. A good analogy is a group of people running in opposite directions around a track – they all get mixed together quickly. This method offers high mixing efficiency with medium-to-high mixing intensity.
The paddle mixer works differently. As the paddles rotate, they scoop up the material and then toss it into the air. The material primarily undergoes local tumbling, with weaker overall circulation. It's like using a shovel to turn sand – only a small pile is moved at a time, requiring much longer to achieve uniform mixing. This method provides relatively gentle mixing intensity.
3. Suitable Materials: One is a Generalist, the Other is a Specialist
The ribbon mixer is excellent for dry powder-to-powder mixing, such as flour with icing sugar, and is also well-suited for lightweight powders like activated carbon and starch. However, it is not very good at handling wet or pasty materials, as these tend to adhere to the blades. The ribbon mixer is also unsuitable for fibrous materials, as the fibers can easily wrap around the ribbons.
The paddle mixer is the opposite. It is very suitable for mixing dry powders with small amounts of liquid, such as in wet granulation processes, and also handles sticky or pasty materials well. For friable (easily broken) granular materials, the paddle mixer is gentler and less likely to cause breakage. Fibrous materials, such as herbs and animal feed, are also an area where the paddle mixer excels.
Simply put: if you primarily mix dry powders and granules, the ribbon mixer is the first choice. If you need to handle wet materials, pastes, friable granules, or fibrous materials, the paddle mixer is more appropriate.
4. Mixing Uniformity and Time Comparison
The ribbon mixer has a fast mixing speed. A typical batch takes only 3 to 10 minutes to achieve uniformity, with a very high degree of homogeneity. The coefficient of variation (CV) can reach 5% or even lower, meaning each batch of product has very consistent quality.
The paddle mixer requires a longer time, typically 10 to 20 minutes per batch. Its mixing uniformity is relatively lower, with a coefficient of variation generally between 5% and 10%. Regarding fill volume, the ribbon mixer can accept a fill range of 40% to 100% of its total capacity, while the paddle mixer is best operated at 30% to 70% fill.
5. Selection Advice: Which One Should You Choose?
If your materials are dry powders or granules (non-sticky, non-wet), and you require short mixing times and high uniformity with relatively large batch sizes, the ribbon mixer is the priority. It is particularly suitable for industries producing food additives, nutritional supplements, chemical powders, and plastic auxiliaries.
If your materials contain water, oil, are sticky or paste-like, or if they contain friable granules needing gentle handling, or long fibers, then the paddle mixer is the better choice. It is particularly suitable for wet granulation, pet food, adhesives, and fermentation substrates.
