Product Description
This Semi-Automatic Auger Filling Machine is capable of dosing and filling functions. Its specialized design makes it well-suited for handling fluidic or low-fluidity materials such as coffee powder, wheat flour, condiments, solid beverages, veterinary drugs, dextrose, pharmaceuticals, powder additives, talcum powder, agricultural pesticides, dyestuffs, and more.
Features
Lathing auger screw to guarantee the precise filling accuracy
PLC control and touch screen display
Servo motor drives screw to guarantee stable performance
Quick disconnecting hopper could be washed easily without tools
Can be setting to semi-auto filling by pedal switch or auto filling
Full stainless steel 304 material
weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to materials’ density change.
Save 20 sets of formula inside the machine for later use
Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
Multi language interface
Specification
| Model | TP-PF-A10 | TP-PF-A11 |
TP-PF-A11S |
TP-PF-A14 | TP-PF-A14S |
| Control
system |
PLC & Touch
Screen |
PLC & Touch Screen | PLC & Touch Screen | ||
| Hopper | 11L | 25L | 50L | ||
| Packing
Weight |
1-50g | 1 - 500g | 10 - 5000g | ||
| Weight
dosing |
By auger | By auger |
By load cell |
By auger | By load cell |
| Weight Feedback | By off-line scale (in picture) | By off-line scale (in
picture) |
Online weight feedback | By off-line scale (in picture) | Online weight feedback |
| Packing
Accuracy |
≤ 100g, ≤±2% | ≤ 100g, ≤±2%; 100 – 500g,
≤±1% |
≤ 100g, ≤±2%; 100 – 500g,
≤±1%; ≥500g,≤±0.5% |
||
| Filling Speed | 40 – 120 times per
min |
40 – 120 times per min | 40 – 120 times per min | ||
| Power
Supply |
3P AC208-415V
50/60Hz |
3P AC208-415V 50/60Hz |
3P AC208-415V 50/60Hz |
||
| Total Power | 0.84 KW | 0.93 KW | 1.4 KW | ||
| Total Weight | 90kg | 160kg | 260kg | ||
Configuration List
| No. | Name | Pro. | Brand |
| 1 | PLC |
Taiwan |
DELTA |
| 2 | Touch Screen |
Taiwan |
DELTA |
| 3 | Servo motor |
Taiwan |
DELTA |
| 4 | Servo driver |
Taiwan |
DELTA |
| 5 | Switching powdersupply | Schneider | |
| 6 | Emergency switch | Schneider | |
| 7 | Contactor | Schneider | |
| 8 | Relay | omron | |
| 9 | Proximity switch |
Korea |
Autonics |
| 10 | Level sensor |
Korea |
Autonics |

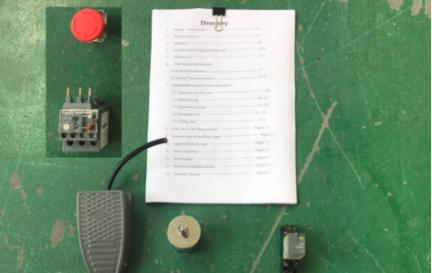

Accessories
| No. | Name | Quantity | Remark |
|
1 |
Fuse |
10pcs |
 |
|
2 |
Jiggle switch |
1pcs |
|
|
3 |
1000g Poise |
1pcs |
|
|
4 |
Socket |
1pcs |
|
|
5 |
Pedal |
1pcs |
|
|
6 |
Connector plug |
3pcs |

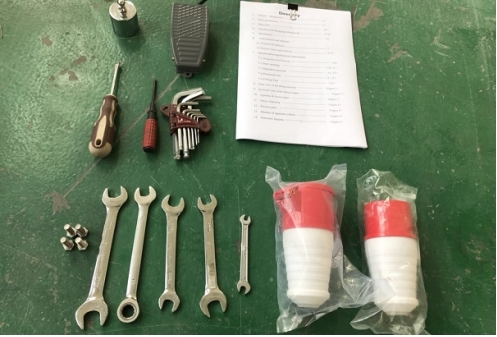

Tool box
|
No. |
Name |
Quntity |
Remark |
|
1 |
Spanner |
2pcs |
|
|
2 |
Spanner |
1set |
|
|
3 |
Slotted screwdriver |
2pcs |
|
|
4 |
Phillips screwdriver |
2pcs |
|
|
5 |
User manual |
1pcs |
|
|
6 |
Packing list |
1pcs |
Detailed Photos
1, hopper
Level split hopper
It is very easy to open hopper and do cleaning.
Disconnect hopper
It is not easy to take hopper apart do cleaning.
2, the way to fix auger screw
Screw type
It will not make material stock, and easy for cleaning.
hang type
it will make material stock, and become rust, not easy for cleaning.
3, air outlet
Stainless steel type
It is easy for cleaning and beautiful.
cloth type
it has to change termly for cleaning.
4, level senor (Autonics)
it gives signal to loader when material lever is low,
it does feed automatically.
5, hand wheel
It is suitable for filling into bottles/bags with different height.
5, hand wheel
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.
7, auger screw and tube
In order to make sure filling accuracy, one size screw is suitable for one weight range, for example, dia. 38mm screw is suitable for filling 100g-250g.

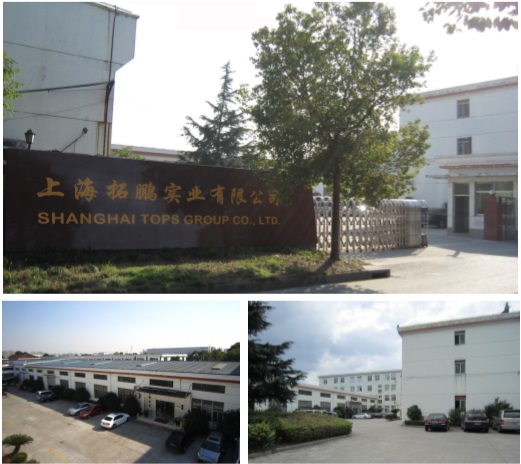

Factory Show
